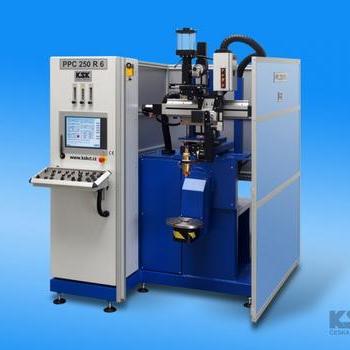

全自动PPC 250 R6的粉末式等离子覆焊机可用于零部件的表面或回转零部件如阀座，截齿，发动机阀门，玻璃模具等          熔覆技术: PTA + 粉末          应用: 玻璃工业-颈阀，环等          + 采用2-4轴焊嘴定位系统          + 变位机两轴控制.          + 变位机工作台＊大载重30KG          + 手动模式设置的参数可以记录在程序中          + 通过程序控制焊接周期         + 通过PPC对话框或者人机模式进行编程

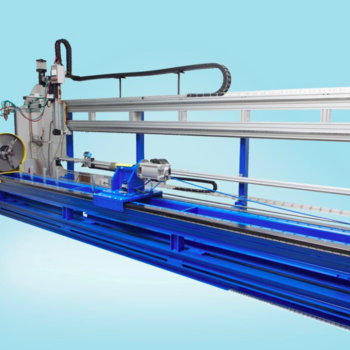

PPC-250WH 主要用于长轴类零部件修复和增强         熔覆技术：PTA + 合金粉末         应用: 螺旋螺杆，各种轴类       + 焊枪采用三轴定位系统控制       + 变位机C轴控制       + 配有顶针尾架和预热系统       + max载重：2000 kg.       + 手动模式设置的参数可记录在程序中       + 通过程序控制焊接周期      + 可通过PPC对话框中或者人机模式进行编程

全自动多功能PPC 250 PTM一体机主要用于阀门，阀座以及其重工业零部件         熔覆技术：PTA + 合金粉末         应用: 阀门和其他重工业零部件       + 焊枪采用三轴轴定位系统控制       + 变位机两轴控制      + 工作台面直径 500, 800 or 1000 mm.      + max载重：1000 kg.      + 手动模式设置的参数可记录在程序中     + 通过程序控制焊接周期    + 可通过PPC对话框中或者人机模式进行编程

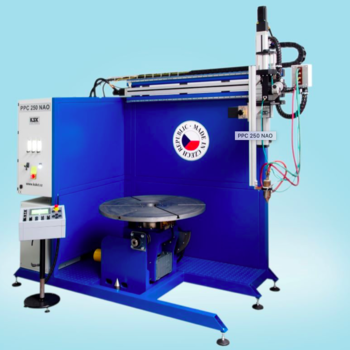

全自动多功能PPC 250 NAO一体机主要用于阀门、阀座、止回阀等零部件              熔覆技术：PTA + 合金粉末         应用: 阀门、阀座、止回阀等        + 焊枪采用三轴定位系统控制        + 变位机两轴控制        + 工作台面直径 500, 800 or 1000 mm.        + max载重：1000 kg.        + 手动模式设置的参数可记录在程序中        + 通过程序控制焊接周期        + 可通过PPC对话框中或者人机模式进行编程+可通过PPC对话框中或者人机模式进行编程

SA 600The SA 600 automatic welding machine consists of several modules, a three-axis linear travel mounted on two columns, a roller positioner located on the rails in the floor and a rotary positioner. The device makes it possible to perform linear or rotary welds of parts of containers mounted on a roller positioner or smaller parts mounted in a tilting positioner. Parameter settings are made from the control panel. The welding head is mounted on a support driven by a servomotor and has the option of setting the exact position using a manual support. The welding source stands alone behind the level of the supporting columns. The machine can be equiped by various welding proceses  - for exemple MIG, TIG, UP.           焊接技术： MIG/TIG/UP              + 焊接零部件直径范围 100-1000mm，       + Max负载 1000kg       + 焊接零部件的长度范围300-5000m

SA 206The automatic machine serves for welding of seats into the bodies of armatures. Seats are usually inserted obliquely into the bodies. Welding head follows automatically welding joint by left-right traversing.         焊接技术： MIG/TIG        + 机械卡盘固定       + 回转直径1800mm       + Max负载 1500kg       + 焊接周期可编程       + programmable welding cycle for two seats           simultaneously       + 设备尺寸 4170 x 1750  x 1950mm

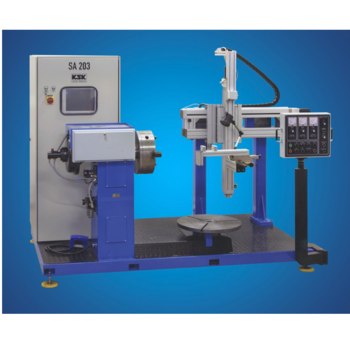

SA 203The automatic machine serves for welding of seats into the bodies of armatures and for direct weld surfacing of seats within the bodies of armatures. Seats are usually inserted obliquely into the bodies. Welding head follows automatically welding joint by left-right or upside-down traversing.                      焊接技术： MIG        + 气动/机械卡盘固定       + 回转直径1000mm       + Max负载 150kg       + 焊接周期可编程       + 设备尺寸 4300 x 1850  x 1950mm

The automatic machine serves for welding of seats into the bodies of armatures. Seats are usually inserted obliquely into the bodies. Welding head follows automatically welding joint by left-right traversing.                     焊接技术： MIG       + 液压卡盘固定       +回转直径1800mm       +Max负载 1500kg       +programmable welding cycle for two seats          simultaneously       +设备尺寸 4170 x 1750  x 1950mm

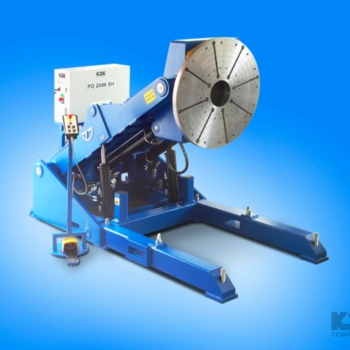

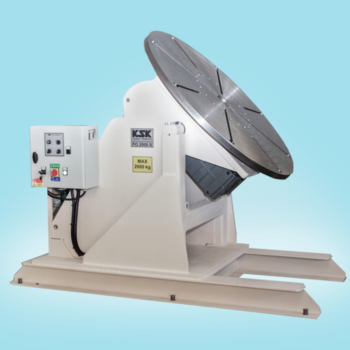

      PO 2500SH 适用于重量小于2500kg的零部件焊接     技术参数     液压翻转和提升     负载≤2500kg     工作台直径1050mm     旋转无级变速     脚踏式启停     遥控旋转，顺时针

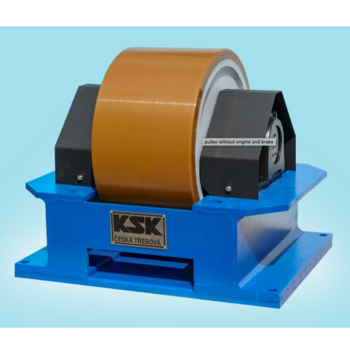

separate supporting pulliesthese separate supporting pullies are offered with brake and with engine. Width and diamater of pullies according requirement.               + load capacity according requirement       + surface of pullies on requirement       + pulley can be driven       + with or without brake

        PO 2000S 适用于重量小于2000kg零部件的焊接     技术参数     电动翻转工作台     负载≤2000kg     工作台直径1000mm     旋转无级变速     脚踏式启停     遥控旋转，顺时针

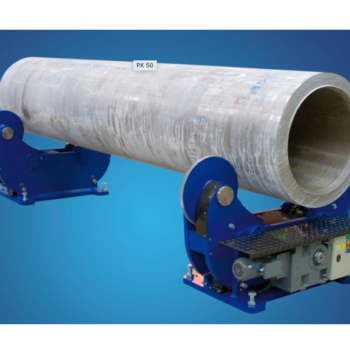

This positioner we offer as separate part with two pullies, One part has two pullies with engine (driven) and with brake. Pullies have metal surface.+ metal pullies+ load capacity of one part is 20kN+ width and diamater of pullies according requirement+ one part of positioner with two pullies is driven+ one part of positioner with two pullies has brake

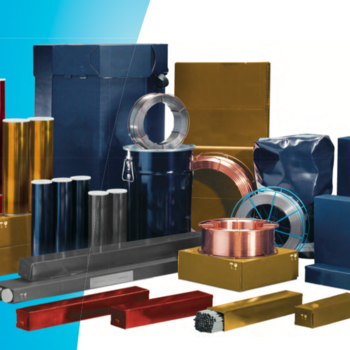

我们提供优质的焊接材料：–涂层电极（钨极）–阳极–焊丝和棒–助焊剂–管电极–合金粉末–钎焊棒

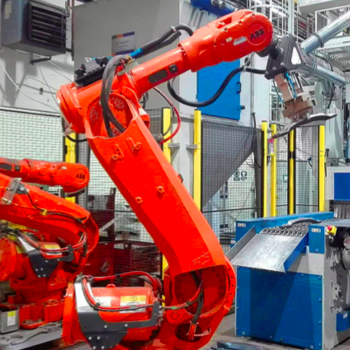

焊接机器人与ABB合作开发KSK与ABB公司合作通过机械臂，定位器，卡盘组装焊接机器人用于等离子熔覆焊接；也可以将机器人技术用于：–电弧焊- 点焊–冲压线的操作–铸造厂–处理和码垛–应用于密封和胶水–塑料生产线等

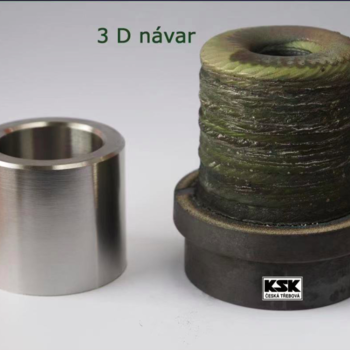

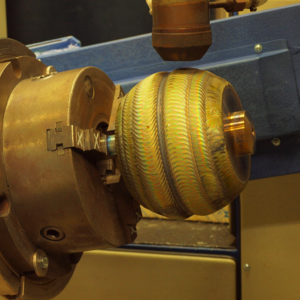

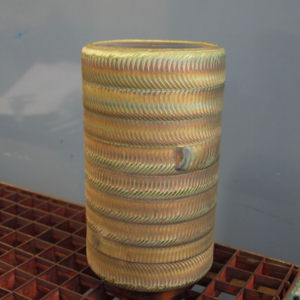

等离子体堆焊为将来制造大型零件或者复杂零部件的一种可能方式，
